Fanatec CSL DD incl. PSU 90 + QR2L (5 NM) CSL_DD_QR2L_90_EU

Description

Direct-Drive system delivers instant, detailed force feedback
Linear, consistent performance (5 Nm peak torque)
Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)

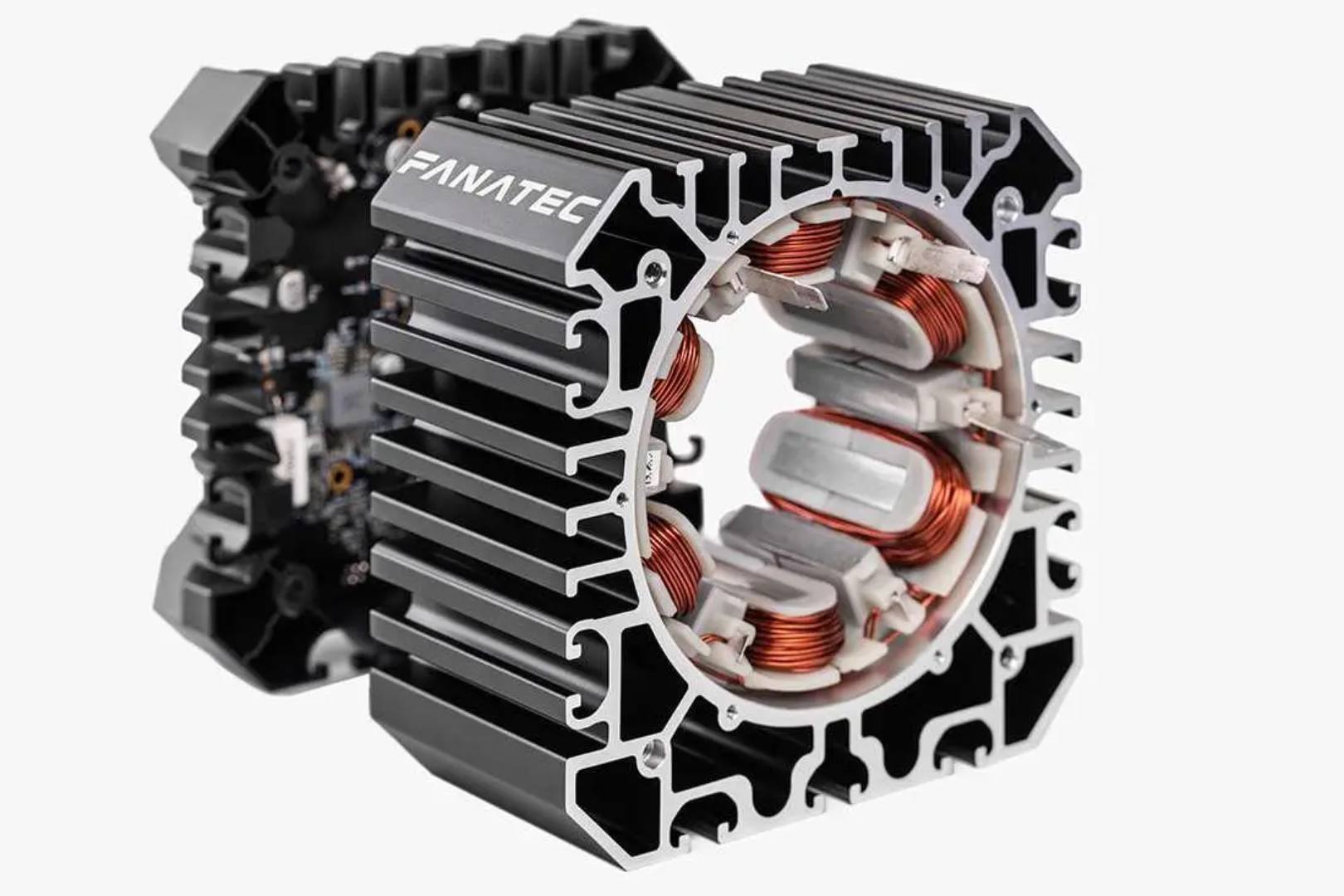

Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
High-resolution (contactless) Hall-position-sensor, same as Podium Series
Steering axis made from carbon fibre-enhanced composite
Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
Rotation: 2520 degrees (electronically limited, adjustable)
Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels

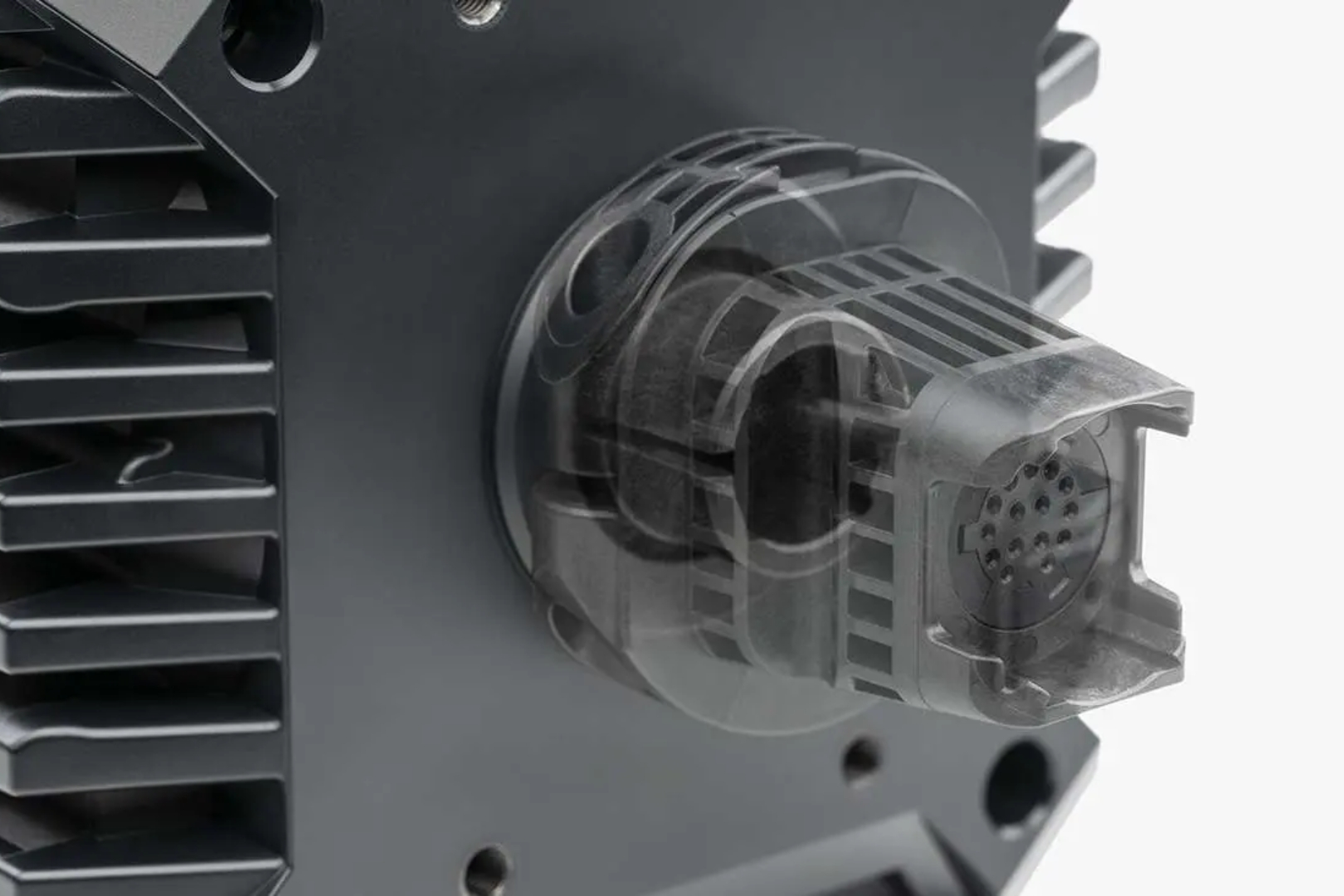

QR2 quick release system
- Motorsport-derived quick release
- Tapered shape naturally ensures a tight fit
- Carbon fibre-reinforced polyamide construction
- Exchangeable
T-nut rail system on sides and bottom for easily adjustable hard-mounting
Optional table clamp (sold separately), supports 5 to 60 mm table thickness

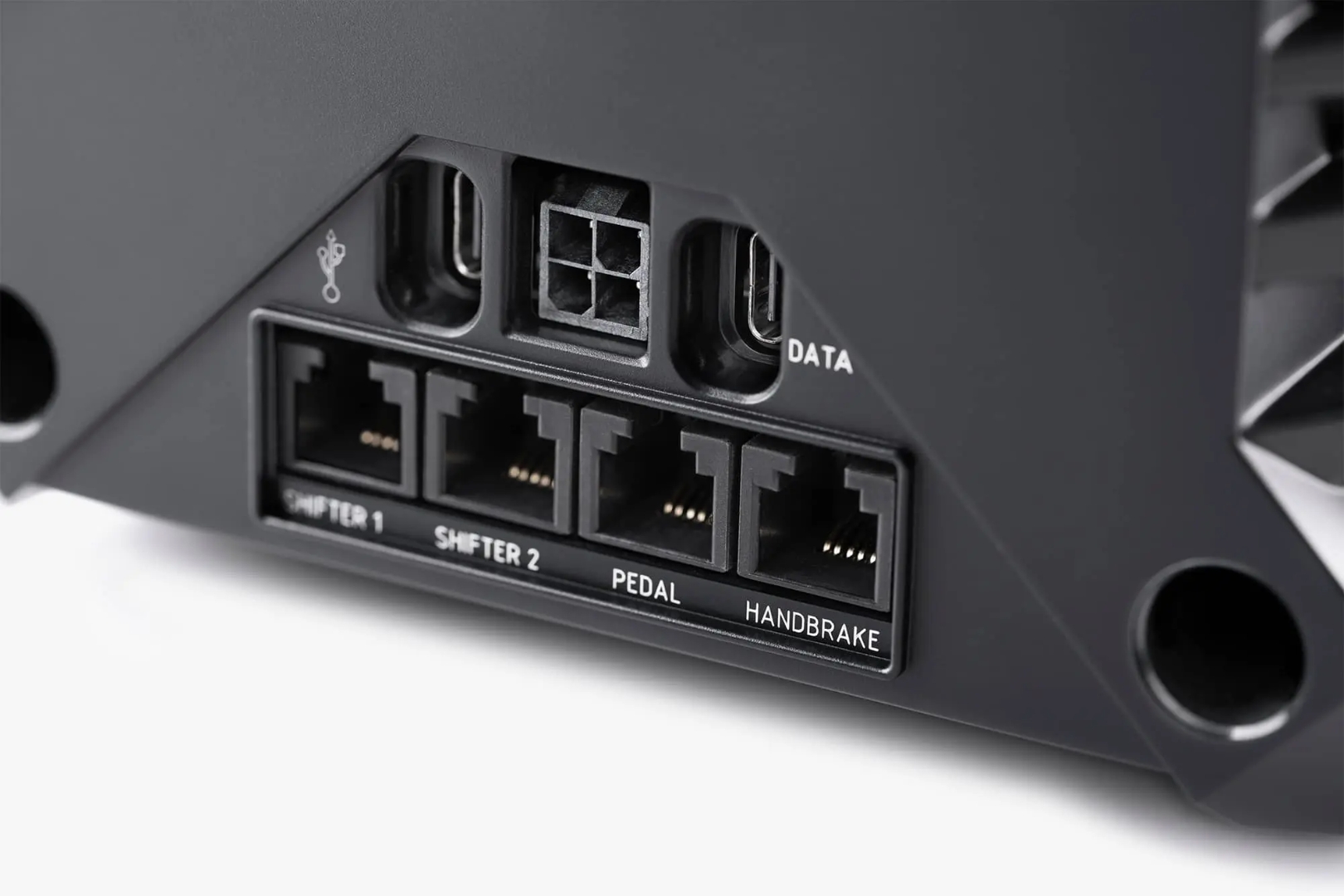

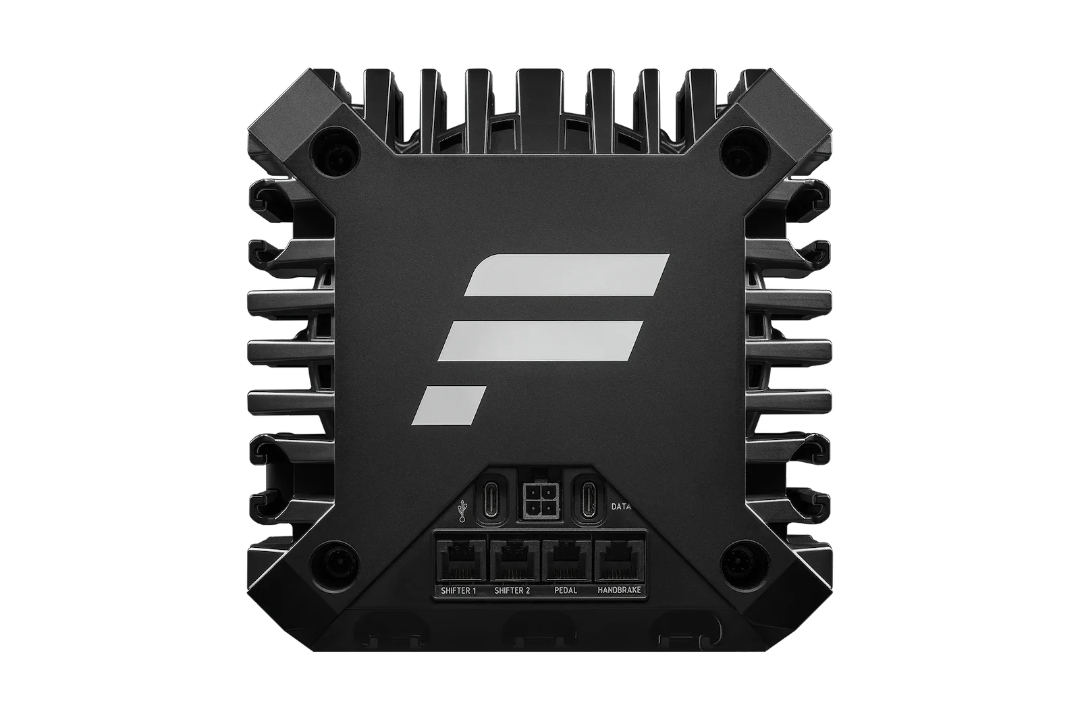

Ports:
- Power supply
- USB-C to PC / console
- Fanatec DataPort-C
- Shifter 1
- Shifter 2 (Sequential only)
- Pedal
- Handbrake
Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

The CSL DD QR2 Wheel Base is compatible with:

All Fanatec Steering Wheels (with QR2 Lite Wheel-Side, QR2 Wheel-Side, or QR2 Pro Wheel-Side)
All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
ClubSport Shifter (including ClubSport Static Shifter Paddles)
ClubSport Handbrake (all versions)
All Fanatec Cockpits
CSL DD Table Clamp
ClubSport DD Table Clamp
ClubSport Table Clamp V2
Boost Kit 180
Podium Mounting Brackets (the CSL DD includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

PC: The CSL DD QR2 Wheel Base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.

*If you select the Boost Kit 180 (180W power supply), the standard power supply is not included.

Xbox®: The CSL DD QR2 Wheel Base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed Steering Wheel.
PlayStation®: The CSL DD QR2 Wheel Base is not compatible with any PlayStation® console and cannot be upgraded to achieve
