Features

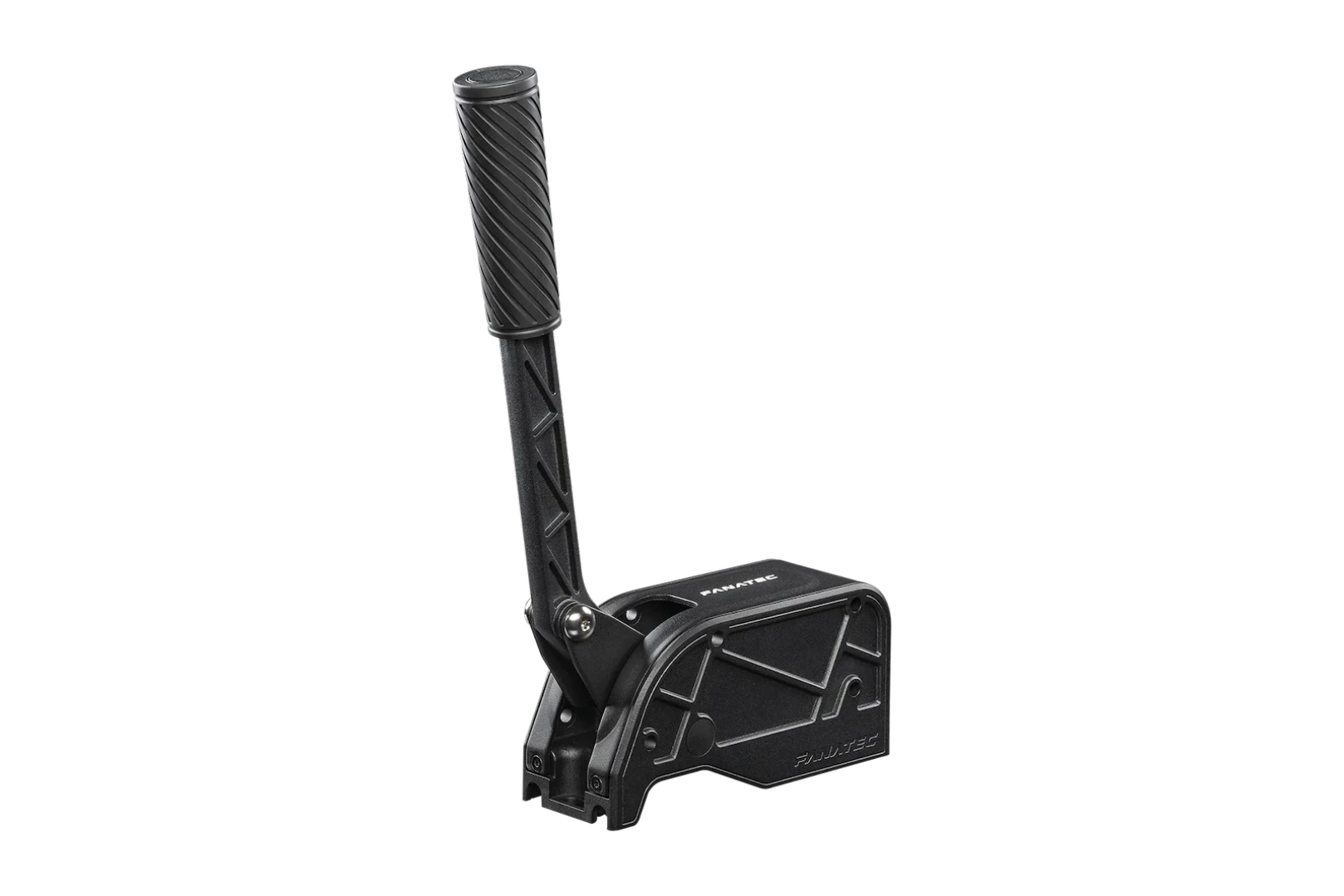

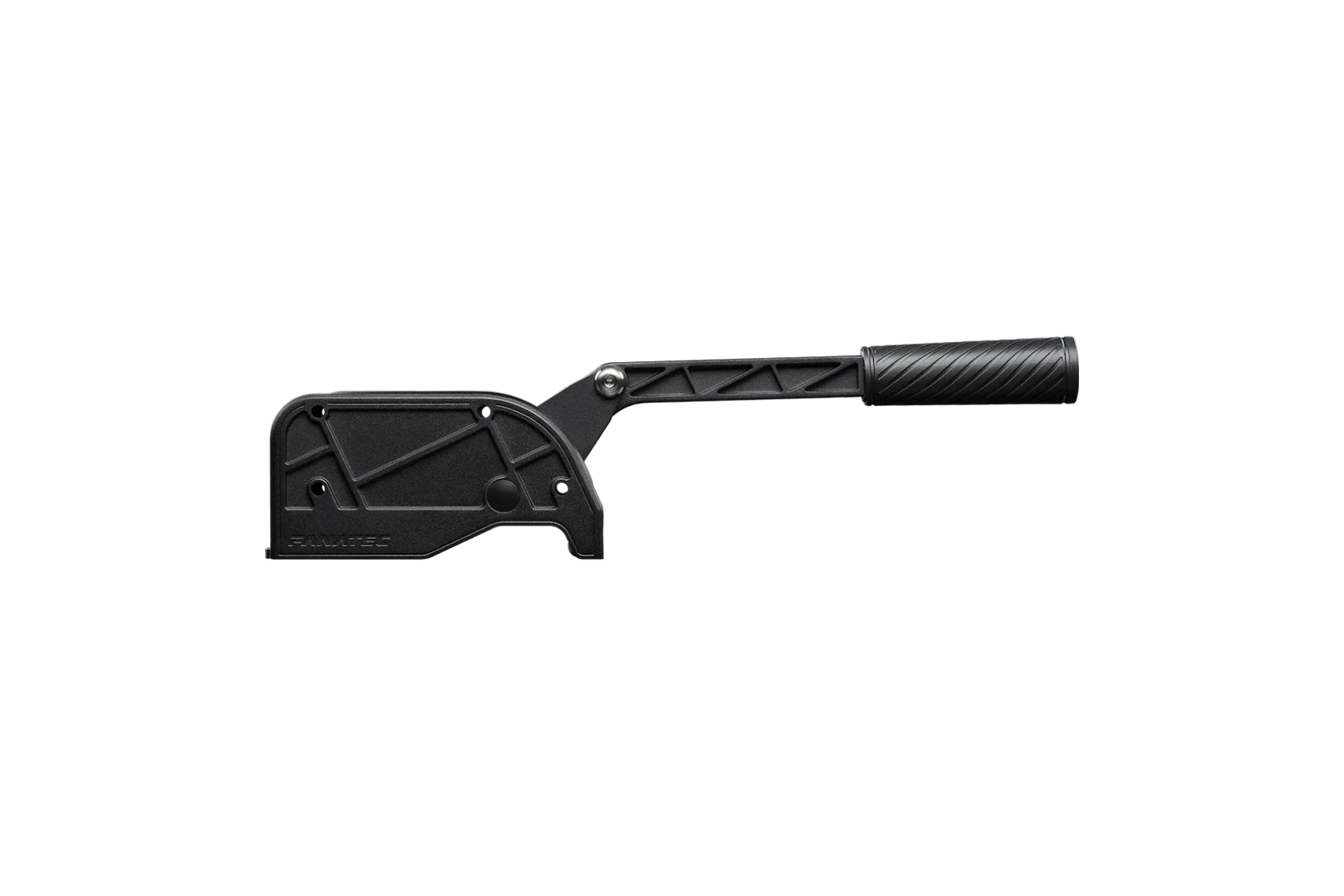

• All-new handbrake design ideal for rally and drifting
  • Robust steel and aluminum construction

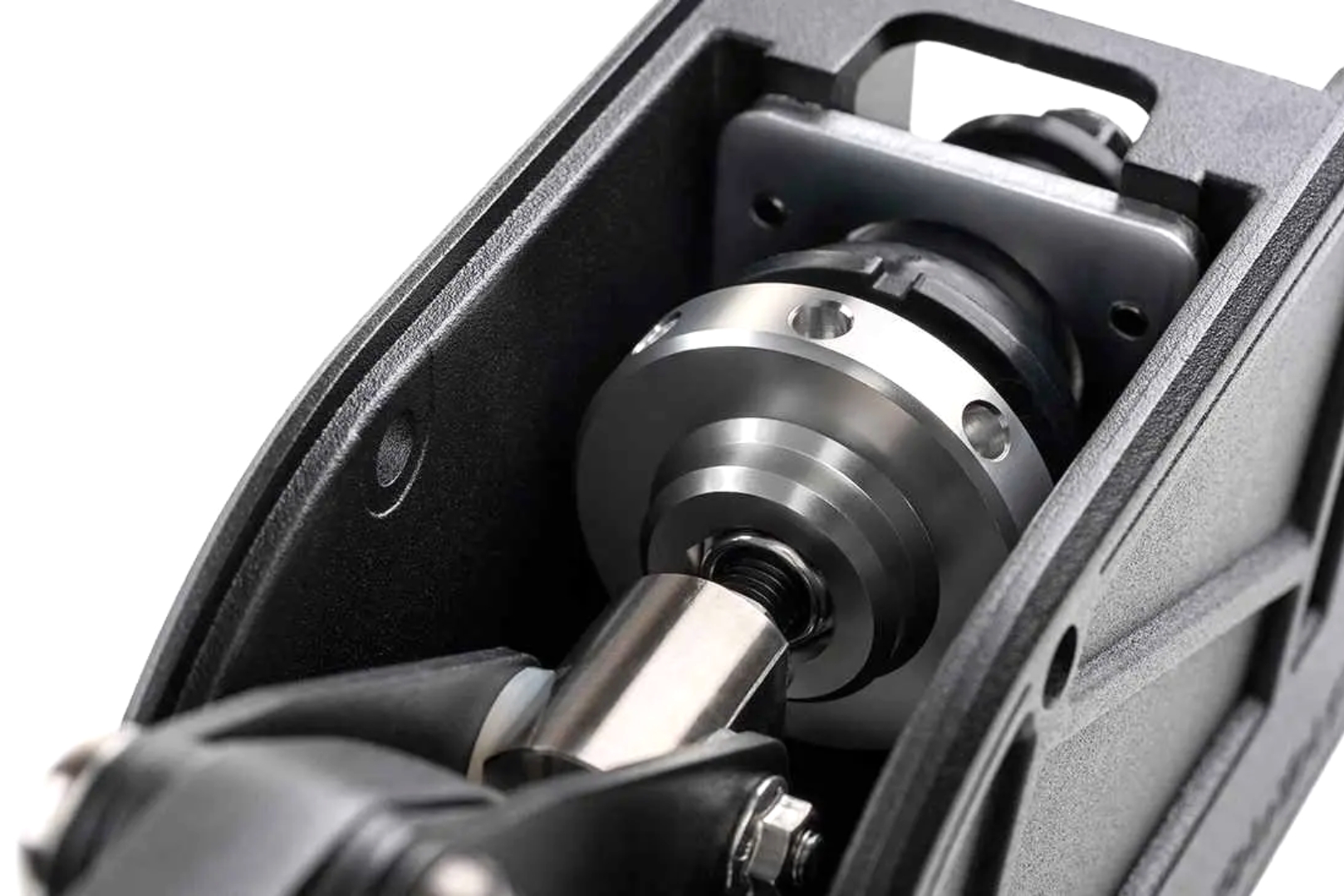

  • Load cell sensor for precision analog input
  • Ball bearings for smoother feel
  • Powder-coated black aluminum casing and lever

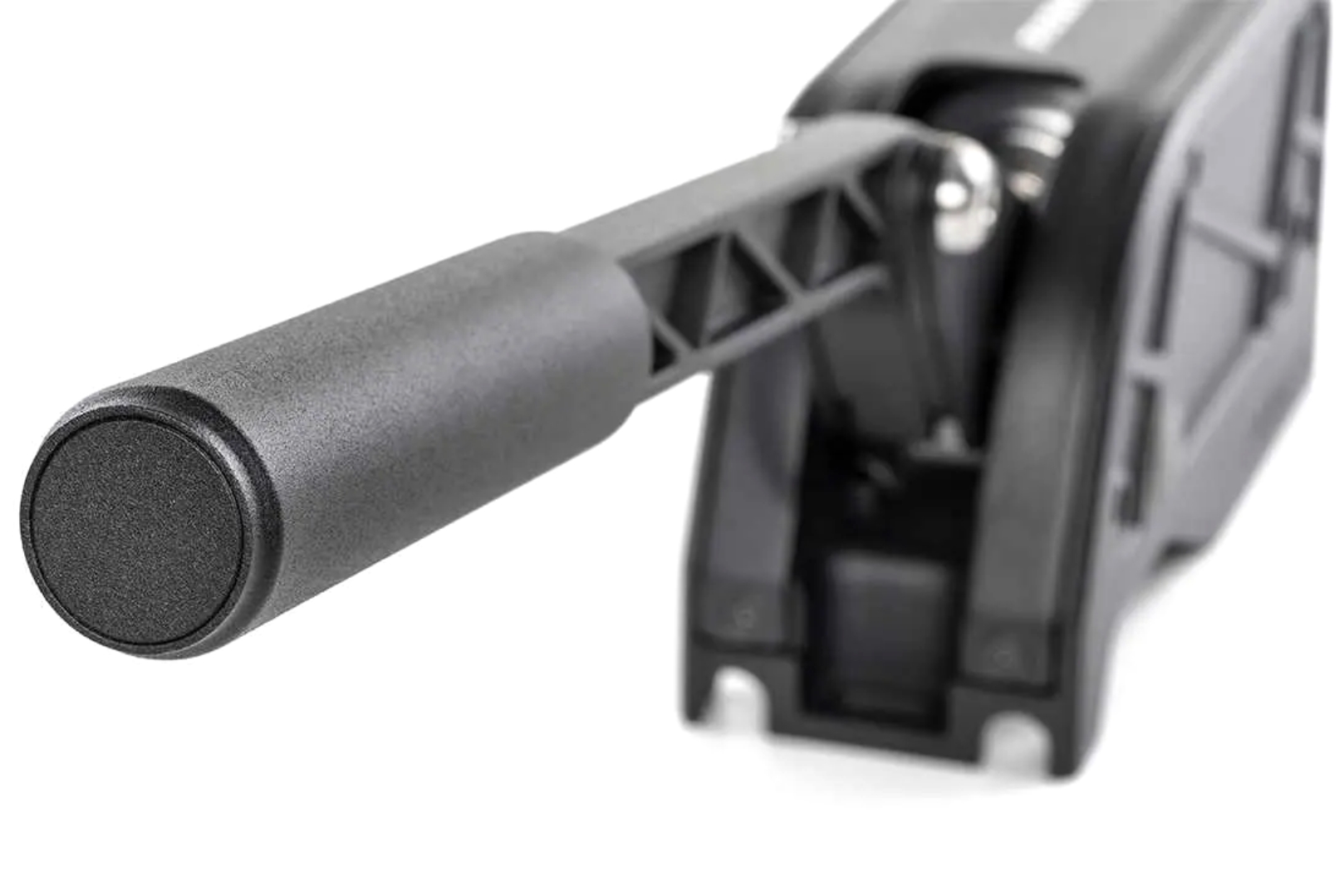

  • Removable rubber grip
• Highly adjustable for stiffness, angle, and travel
  • Adjustable preload
  • Three angle positions

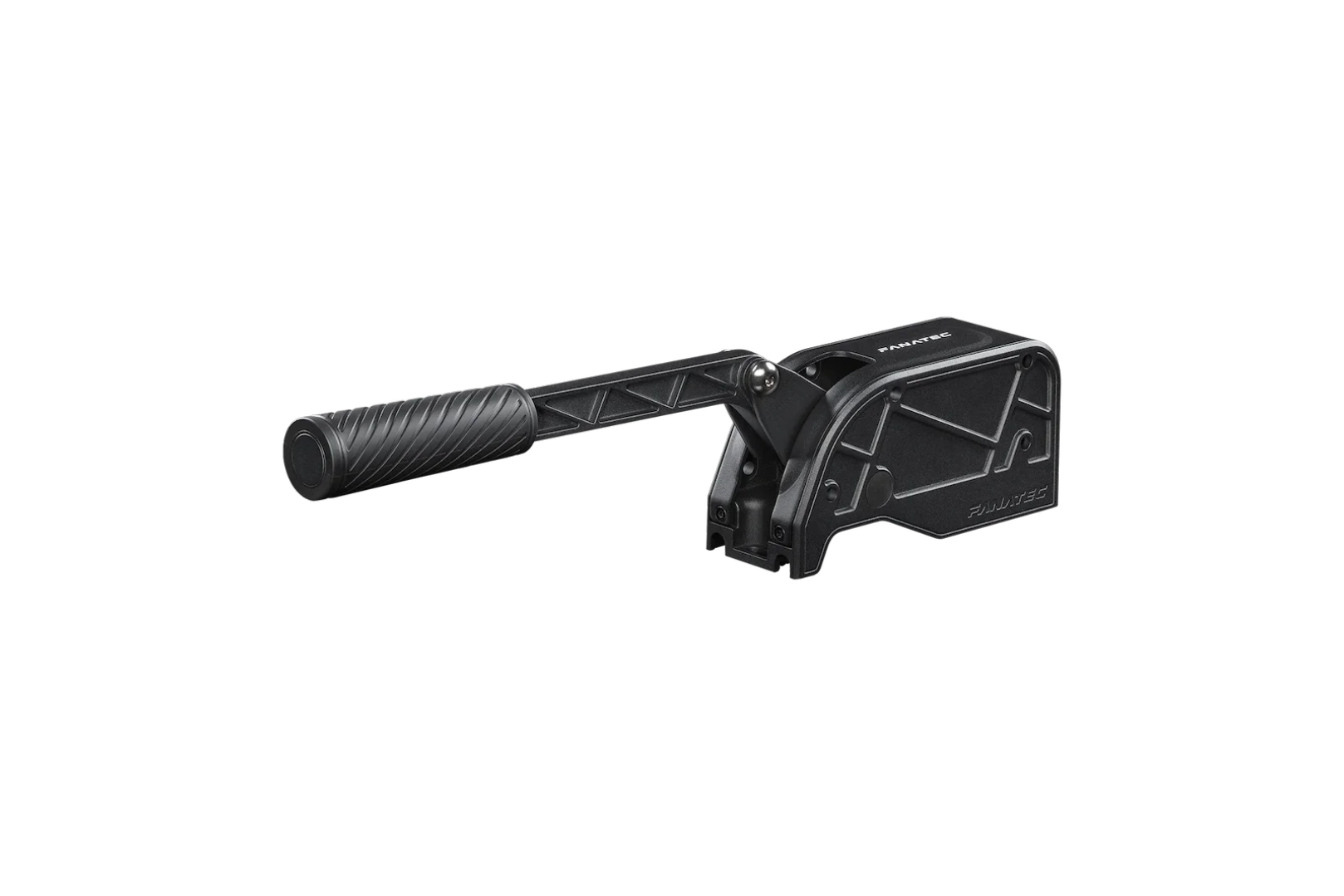

  • Invertible orientation
  • Fine angle tuning via rear bolt assembly

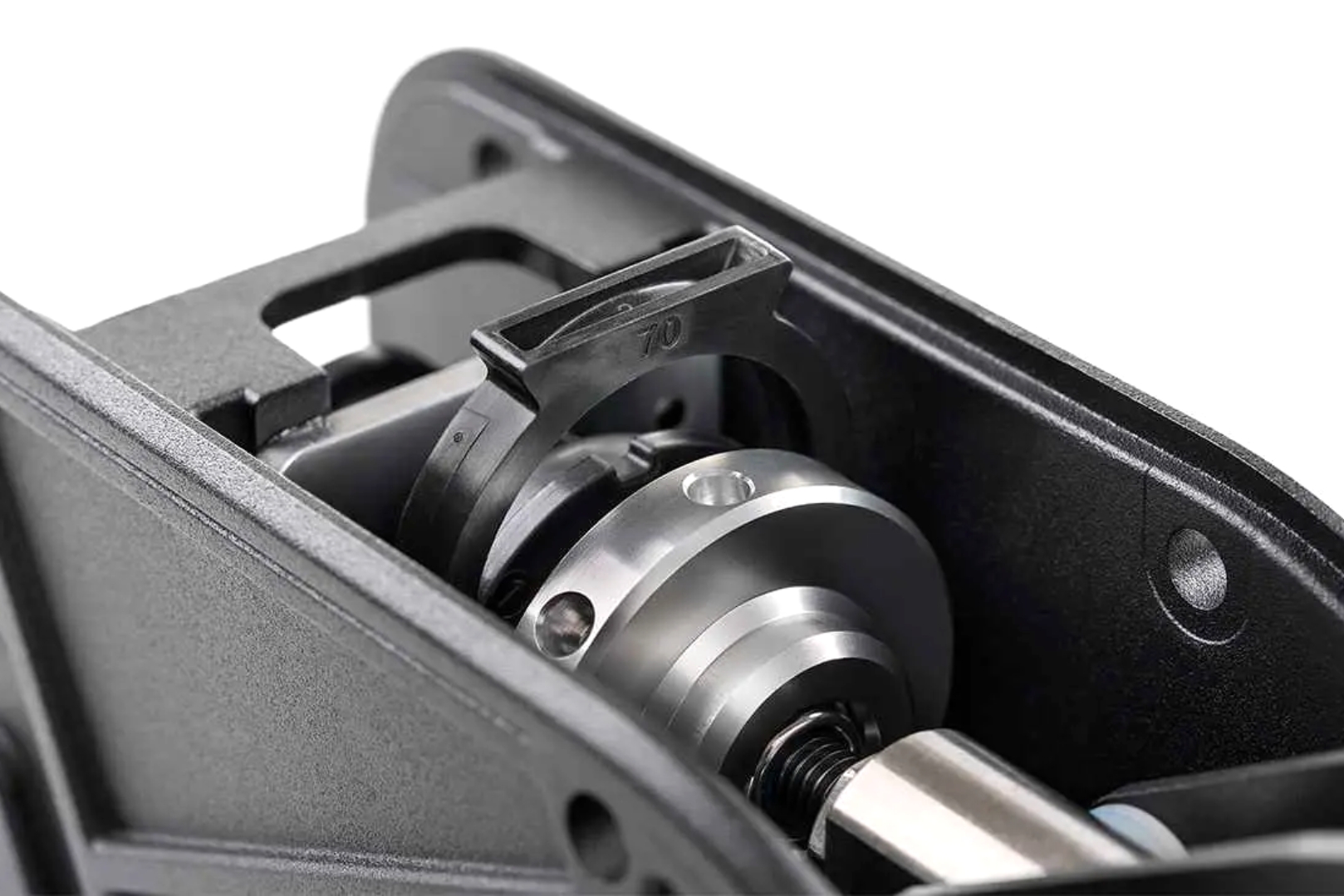

  • Travel adjustment using removable spacer (60, 70, and 80 mm)
• Comprehensive mounting options

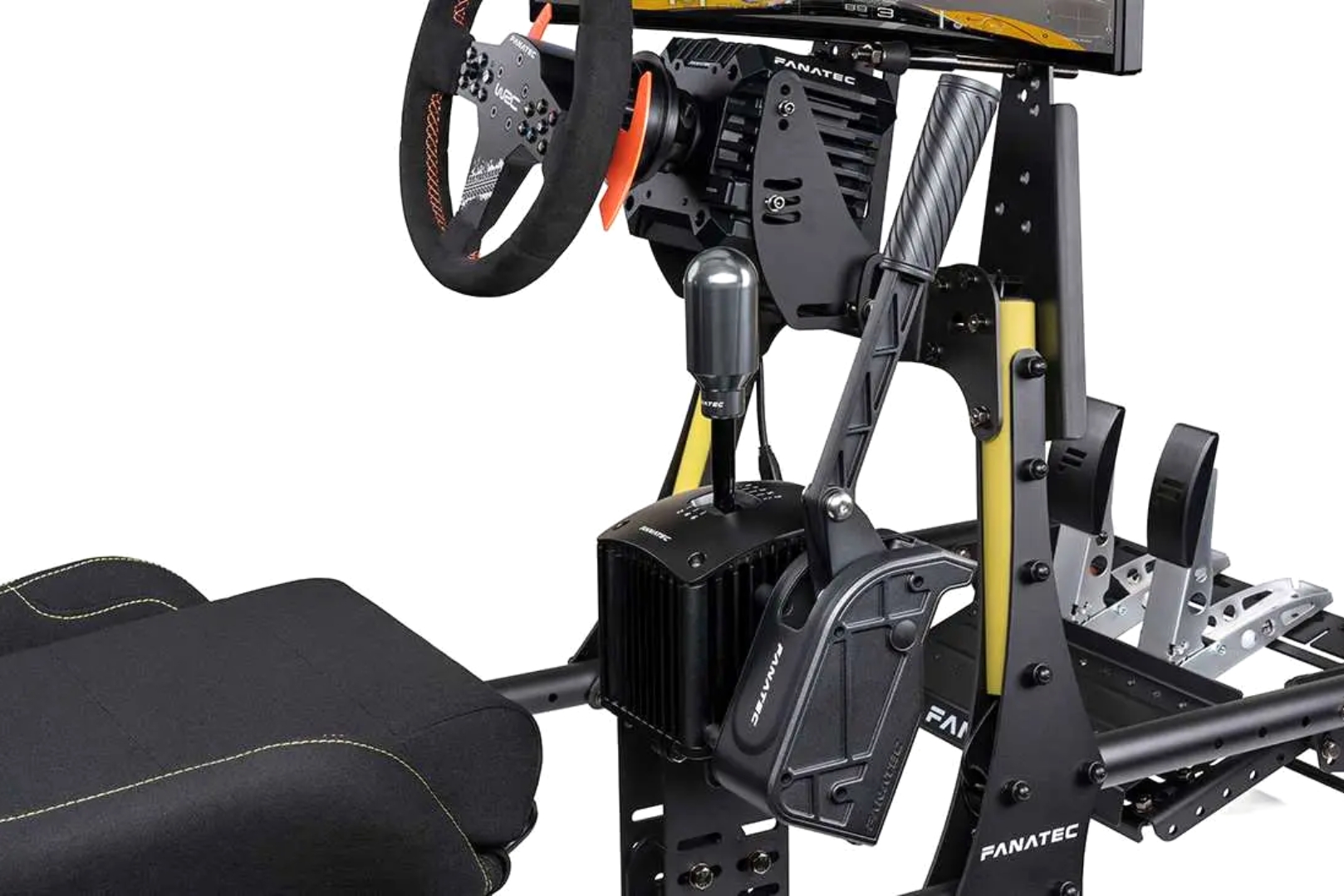

  • Mounts to side of ClubSport Shifter with included spacer

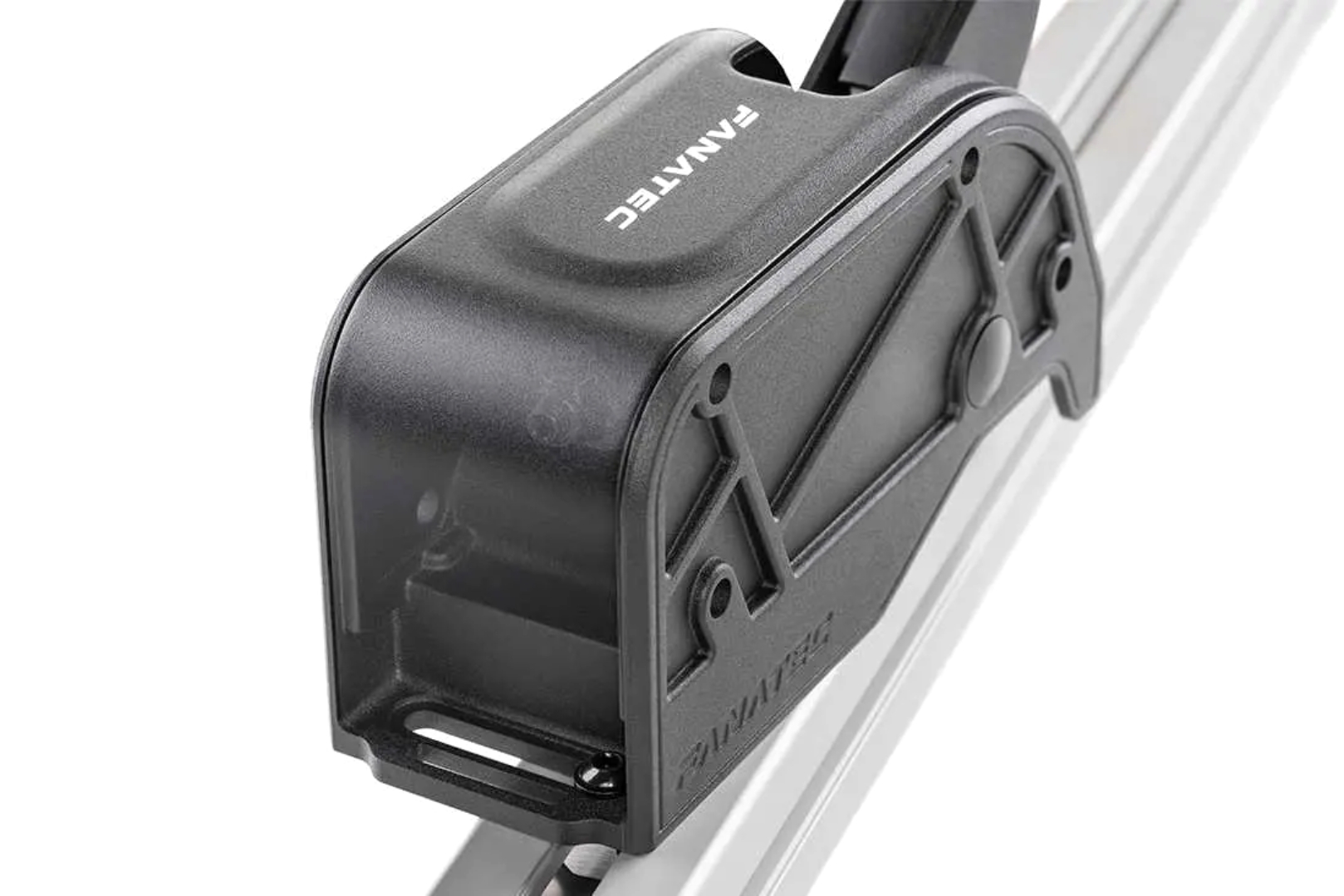

  • Mountable at an angle on aluminum profile
  • Suitable for mounting in a vertical or horizontal orientation
  • Table mounting possible (see Special Notes section below)

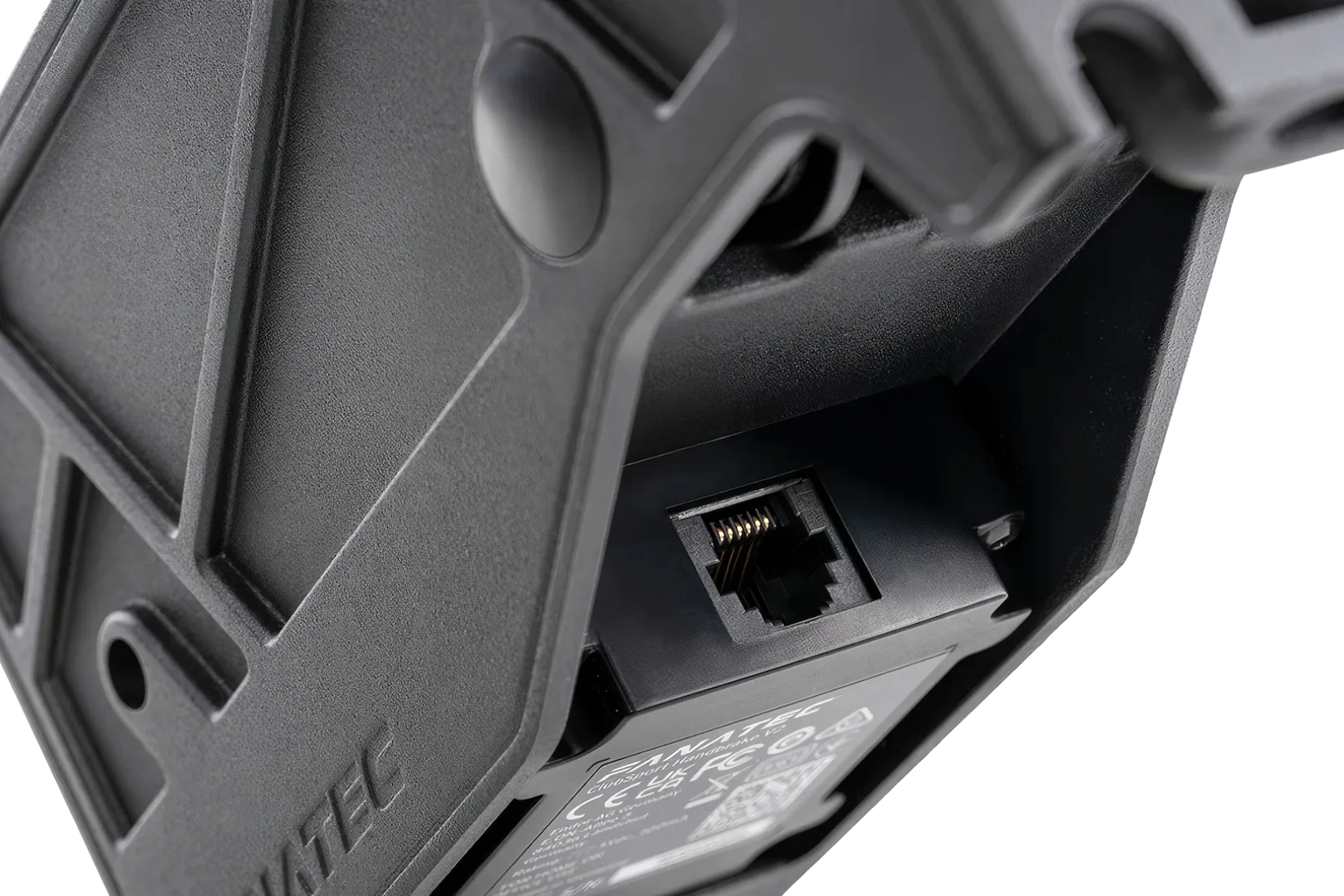

• RJ12 to RJ12 cable connects directly to your Fanatec Wheel Base
  • Compatible with ClubSport USB Adapter (sold separately) to use as a standalone USB device on Windows PC
• Works on PC and consoles, see Compatibility section below

Compatibility

Wheel Bases

This product is compatible with the following Wheel Bases:

• CSL Elite Wheel Base*
• CSL Elite Wheel Base V1.1*
• CSL Elite Wheel Base + – officially licensed for PS4™*
• CSL DD
• Gran Turismo DD Pro Wheel Base
• ClubSport Wheel Base V2*
• ClubSport Wheel Base V2.5*
• ClubSport DD
• ClubSport DD+
• PODIUM Wheel Base DD1
• PODIUM Wheel Base DD1 PS4™
• PODIUM Wheel Base DD2

*The analogue signal is not optimised for belt-driven Wheel Bases at this time (it is functional, but the ‘max’ output does not calibrate as intended). This will be improved in a future firmware update.Pedals: It is also possible to connect this product to the Handbrake port on the following pedals:

• CSL Elite Pedals Load Cell Kit
• CSL Elite Pedals V2
• ClubSport Pedals V3
• ClubSport Pedals V3 inverted

Other:

• ClubSport USB Adapter (only needed to use as a standalone USB device on PC)

Platforms

• PC: this product is compatible with Windows PC when connected to a supported Fanatec Wheel Base or Pedals (see list below). It is also possible to use as a standalone USB device using the ClubSport USB Adapter (sold separately). Functionality is game-dependent.
• Xbox: this product becomes compatible with Xbox One and Xbox Series X|S consoles when connected to a supported Fanatec Wheel Base + Xbox licensed Fanatec Steering Wheel. Functionality is game-dependent.
• PlayStation: this product becomes compatible with PlayStation 4 and PlayStation 5 consoles when connected to a supported PlayStation-licensed Fanatec Wheel Base. Functionality is game-dependent.

What’s Include

• ClubSport Handbrake V2
• Tools
• RJ12 cable (2m)
• Quick Guide
